1. Ultrasonic non-woven bag packing machine for inner and outer packaging
2. Ultrasonic packing machine for single sachet bag

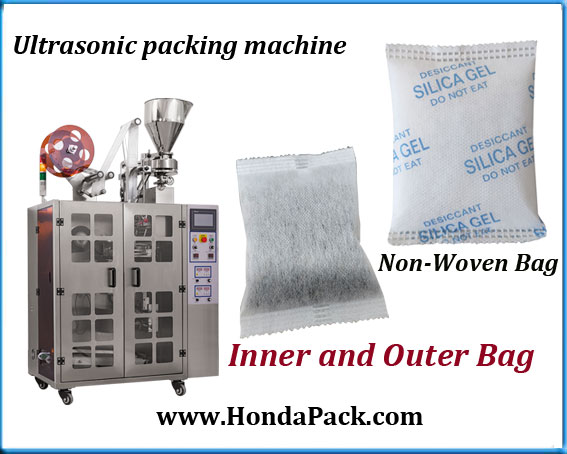

Automatic packing machine for ultrasonic non-woven bag:
|
Specification of Automatic packing machine for ultrasonic sealing non-woven powder bag: More Pictures for details, and Video below! |
|
|
Type: |
Ultrasonic sealing packing machine seriess |
|
Product model: |
C18D |
|
Product name: |
Ultrasonic sealing inner and outer bag packing machine |
|
Application: |
Ultrasonic sealing machine for non-woven fabric for self-heating powder, calcium oxid powder, quicklime desiccant, activated carbon |
|
Ultrasonic filling and packing machine for silica gel desiccant in non-woven powder bag, pet cat litter |
|
|
Ultrasonic sealing and packing machine for herbal foot bath bag, soaking bag, detox soak bag |
|
|
Automatic non-woven bag packing machine for small scented sachet with herbs, potpourri, aromatic ingredients, scent bag |
|
|
Ultrasonic sealing packing machine for brew coffee bag |
|
|
Bag type: |
3 side sealing bag, back sealing bag, small pouch |
|
Outer Bag size: |
L:85~120mm,W:85~100mm - as request |
|
Inner Bag size: |
L:50~75mm, W:50~90mm - as request |
|
Packing speed: |
30~40 bags/min |
|
Filling range: |
5~30g; accuracy:≦±0.2g/bag |
|
Measuring: |
Auger screw filler or Measuring cup |
|
Inner Packing material: |
Ultrasonic sealable non-woven fabric, Ultrasonic sealing nylon mesh |
|
Outer packing material: |
PE/aluminum foil; PE film |
|
Sealing method: |
Ultrasonic sealing and cutting for inner non-woven bag; Outer bag by heat Sealing. |
|
Power: |
Single phase, 220V, 50HZ, 1.5KW |
|
Weight: |
650KG |
|
Dimension (L*W*H): |
1600*900*1900mm |
1. Reasons for choosing non-woven fabric
- Good air permeability: Products needs to be in contact with air to play an adsorption role. There are fine pores between the fibers of non-woven fabric, which allows gas to flow and prevents powder from leaking out.
Right now, there are two types of ultrasonic sealing packing machine on the market, which are used in different fields:
1. Trimming ultrasonic packing machine:
- Features: Smooth edge sealing without extra edges, beautiful appearance.
- Application areas: Beverage industries, such as tea bag, drip coffee packaging, milk tea, etc.
2. Wide-edge sealing ultrasonic packaging machine:
- Features: Width of edge sealing is about 1cm, strong sealing, bubble-proof and leak-proof.
- Application areas: Daily chemical and daily necessities industry, such as foot washing bags, desiccant packaging, foot care products, etc.
As a professional packing machine manufacturer, our company can provide two type of packaging equipment, if any need, please kindly contact me!
Ultrasonic sealing inner and outer bag packing machine for coffee powder:
