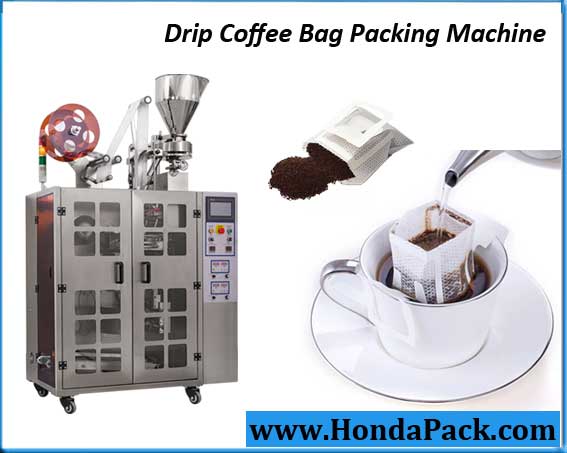

This hanging ear Drip coffee bag packing machine is suitable for Drip coffee bag with outer envelope, available with Vietnamese coffee, arabica coffee, robusta coffee, ganoderma coffee, lavazza coffee, turkish coffee, natural herbs coffee, trung nguyen coffee, lishou slimming coffee, honduras coffee and ginseng coffee, etc.
2. Type of drip coffee bag: People from whole world used drip coffee bag between 90*74mm and 90*70mm because the drip coffee bag materials is a kind of standard products for packing machine.
3. The packaging materials for outer bag is Kraft paper bag or PE bag with aluminum foil, For more details, please kindly contact us.
4. Here shows how to brew the drip coffee bag with a cup and a bottle of hot water.

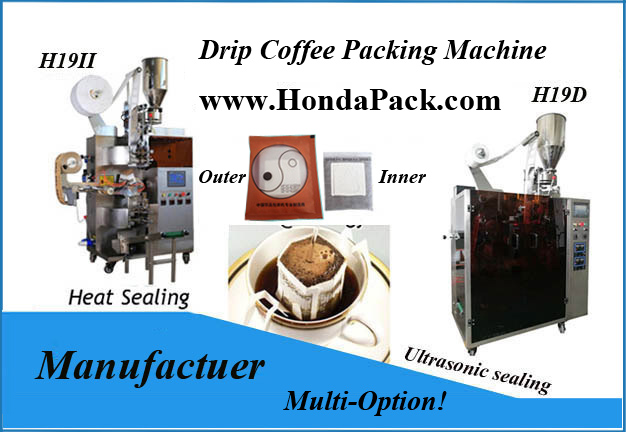

5. The main difference between heat sealing and ultrasonic sealed drip coffee bag is in Sealing Edge of Inner bag. For more details, please kindly contact us.
6. The standard packing for shipping we used is the Plywood Case with plastic film wrapping inside:
7. Nitrogen gas generator: Can supply the Nitrogen gas so that can be inject into drip coffee bag to extend coffee shelf life and keep coffee fresh. For more details, kindly contact for more details.
8. Here shows the working video of drip coffee bag packaging machine: Except this video, welcome to click here to see more working video.
Features of coffee powder packaging machine:
1. The design of the automatic powder packaging machine is reasonable, and the replacement of packaging varieties is extremely convenient for cleaning.
2. Using touch screen display, the screen displays Chinese (English) working status and operation instructions, which is simple and intuitive. The packaging weight is infinitely adjustable, the operation mode can be changed arbitrarily, and the fault alarm prompts.
3. The control of the automatic powder packaging machine adopts PLC, which is anti-interference and stable in operation.
4. The filling is driven by servo, with accurate positioning and high precision, large torque, long life, and the speed can be set. The mixing adopts Taiwan maintenance-free point machine.
5. Various product parameter formulas of the pharmaceutical powder packaging machine can be stored and recalled at any time.
6. Replace the screw attachment, which can adapt to the packaging of large particles to ultra-fine powder materials. According to different materials, it can be equipped with vacuum negative pressure, vibration and other devices.
Standard Technical Data of drip coffee bag packaging machine:
Type: |
Drip coffee packing machine Series |
Product model: |
H19D |
Product name: |
H19D Ultrasonic Drip Coffee Inner and Outer Bag Packing Machine |
Bag type: |
3 side sealing |
Outer Bag size: |
L:85~120mm,W:75~100mm (Film width 200mm, Bag size: 120*100mm) |
Inner Bag size: |
L:50~75mm, W:50~90mm (Filter paper width 180mm, Bag size: 90*75mm) |
Packing speed: |
40~60 bags/min |
Filling range: |
5~15g; accuracy:≦±0.1g/bag |
Measuring: |
Volumetric cup |
Inner Packing material |
Drip coffee bag filter;Nonwoven coffee bag with thread and tag |
Outer packing material |
Kraft paper/aluminum coating; PE/aluminum coating; PE film |
Sealing method: |
Ultrasonic sealing and cutting for inner bag; Outer Bag by heat Sealing. |
Power: |
Single phase, 220V, 50HZ, 1.5KW |
Weight: |
600KG |
Dimension (L*W*H): |
1200*900*1900mm |
Drip Coffee Bag Packing Machine - with multi option

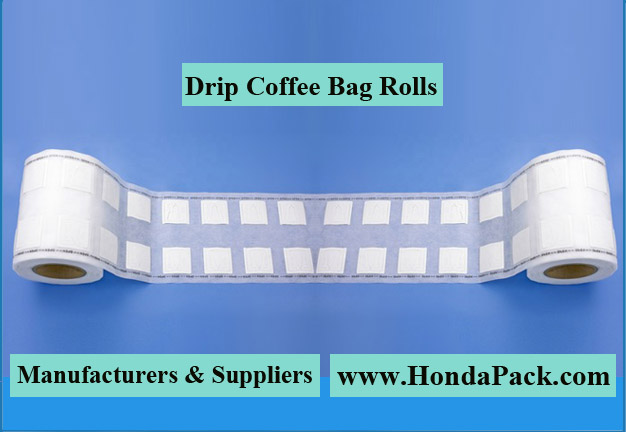

Yamanaka/Ohki Coffee Filter Bag Rolls working with our coffee packing machine:
