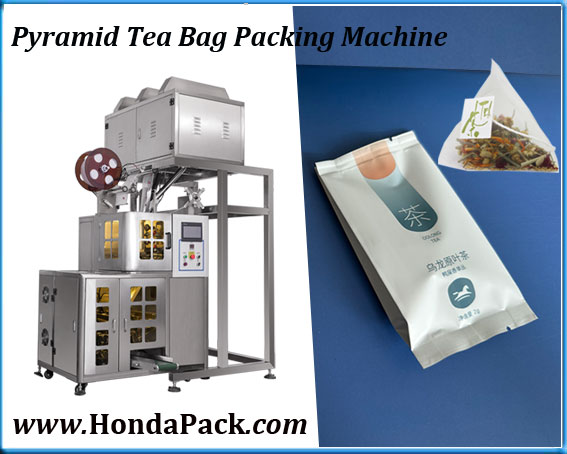

Pyramid tea bag packing machine is an automatic packaging equipment that can fill and seal loose leaf tea, herbal tea, loose leaf tea like black tea, green tea, white tea, chinese tea, oolong tea, sri lanka tea, thai tea, India tea, Rose tea, Ginseng, etc into triangle shaped sachet and wrap up with outer envelope.

Durin the packing process, the machine can automatically complete the steps of measuring, bag making, filling, sealing, counting, photoelectric tracking, date printing, counting, etc, and the finished tea pouch is triangular in shape, novel and unique.

A small note from professional pyramid tea bag packing machine manufacturer:
If you are looking for pyramid tea bag packing machine, please kindly check questions and get answers from this page below:
1. What is the packing weight or volume for tea bag?
2. How many types of inner tea bag packaging materials?
3. What type of packaging materials is used for outer pyramid tea bag?
4. Introduction for mixing: Filling more than one type of tea into single bag.
5. Here shows the working video of pyramid tea bag packing machine as belows / Bottom.
6. Advise you the feature of pyramid tea bag packing machine
7. The techincal date of pyramid tea bag packing machine

2. Type of pyramid tea bag packing materials film roll: From nylon tea bag packaging to pla mesh tea bag, and now biodegradable pla tea bag may be the future.

3. The packaging materials for outer bag is Kraft paper bag or PE bag with aluminum foil, For more details, please kindly contact us.

4. Introduction for mixing: Can fill more than one type of tea product into single bag.

5. Here shows the working video of pyramid tea bag packing machine:
Except this video, welcome to click here to see more working video.

6. Feature of pyramid tea bag packing machine:
1. This machine can perform either three side sealing and triangle teabag. Just need single bond to switch the bag type between three side sealing bag and triangle shape bag.
2. It can make inner and outer bag in same time automatically, which would highly improve the working efficiency.
3. Outer bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
4. Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.
5. The packing material of triangle bag is nylon, non-woven fabric material imported from japan, and it is non-toxic, no bacteria, heat-resistant high quality food grade material.
6. The machine adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.
7. Optional devices: date printer.

Standard Technical Data of pyramid tea bag packing machine:

ype:	Tea Bag Packing Machine Series
Product model:	H21DX
Product name:	Automatic Pyramid Tea Bag Packing Machine with outer envelope
Packing Material:	Inner bag packing material: Pyramid tea bag; Triangle tea bag; Corn fiber PLA mesh; Nylon mesh; Non-woven fabric; PET; 100% biodegradable and bio-compostable material. Outer bag packing material: Kraft paper bag; Plastic bag with aluminum foil coating; PE film roll;
Filling range:	1~10g/bag, accuracy:≦±0.1g/bag
Filling method:	Electric scale
Packing roll width:	140mm, 160mm, 180mm
Sealing length:	50, 60, 70, 80mm
Outer bag size	W: 80-100mm; L: 90-120mm
Sealing method:	Inner Pyramid Bag by ultrasonic sealing and cutting
Bag type:	Inner pyramid bag with outer envelope
Quantity of sealing device:	2 sets
Packing speed:	30-50 bags/min
Motor Power:	220V, 50HZ, 1.5KW
Air supply:	≧0.6Mpa (Can be equipped with air compressor)
Weight:	500KG
Dimension:	3000*900*2300mm(L*W*H)

Pyramid tea bag packing machine Production Line video -Working:
