Automatic Packing Machine

Hanging ear tea bag packing machine for nylon bag with single ear over cup

This hanging ear tea bag packing machine is suitable for nylon tea bag, pla tea bag, non woven tea bag, dip coffee bag, over tea cup, for packing products such as loose leaf tea, herbal tea, health care tea, TieGuanYin, LongJing, DaMaoFeng, Rose Tea, Ginseng, etc.

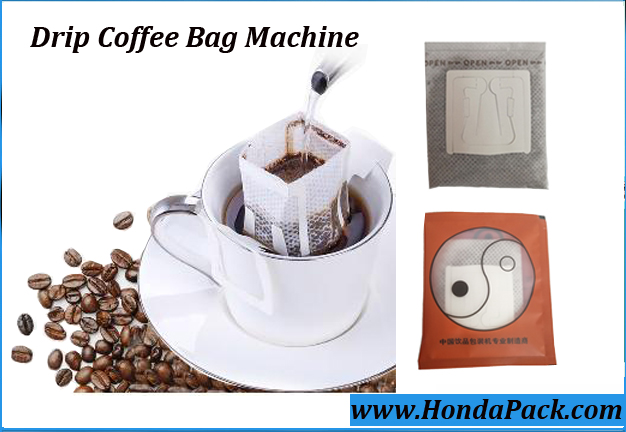

What is hanging ear drip coffee bag and hanging ear dip tea bag?
1. The coffee bag adopt non woven coffee filter mainly and dip tea bag adopt non nylon tea bag, PLA tea bag mainly

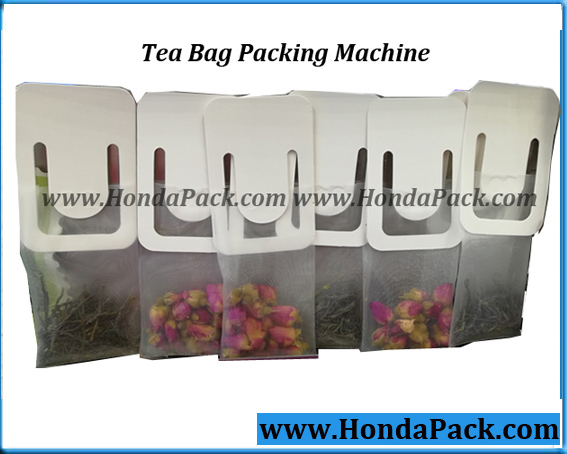

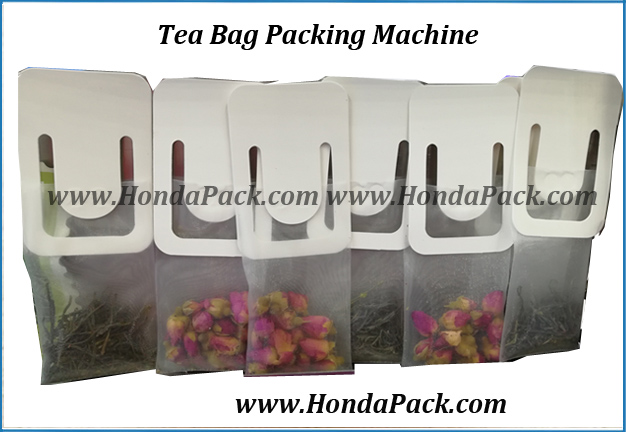

2. The coffee bag is with 2 hanging ears, but tea bag is with single hanging ear.

Feature of hanging ear tea bag packing machine for nylon bag with single ear over cup:
1. This machine can perform either three side sealing by ultrasonic sealing.
2. It is automatically, which would highly improve the working efficiency.
3. Bag sealing is controlled by the stepper motor, ensuring accurate and stable bag length positioning.
4. Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.
5. The packing material of triangle bag is nylon, non-woven fabric material imported from japan, and it is non-toxic, no bacteria, heat-resistant high quality food grade material.
6. The machine adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

Standard Technical Data of hanging ear tea bag packing machine for nylon bag with single ear over cup:

Type:

Tea Bag Packing Machine Series

Product model:

N21DX

Product name:

Hanging ear tea bag packing machine

Packing Material:

Nylon material imported from Japan, Non-woven fabric, 100% biodegradable transparent material, PET, PLA

Filling range:

1~10g/bag, accuracy:≦±0.1g/bag

Packing roll width:

140mm, 160mm, 180mm

Sealing length:

50, 60, 70, 80mm

Sealing method:

Sealing and cutting by ultrasonic

Bag type:

3 side sealing bag

Quantity of sealing device:

2 sets

Packing speed:

30-50 bags/min

Motor Power:

220V, 50HZ, 1.5KW

Air supply:

≧0.6Mpa (Can be equipped with air compressor)

Weight:

750KG

Dimension:

1500*900*2800mm(L*W*H)

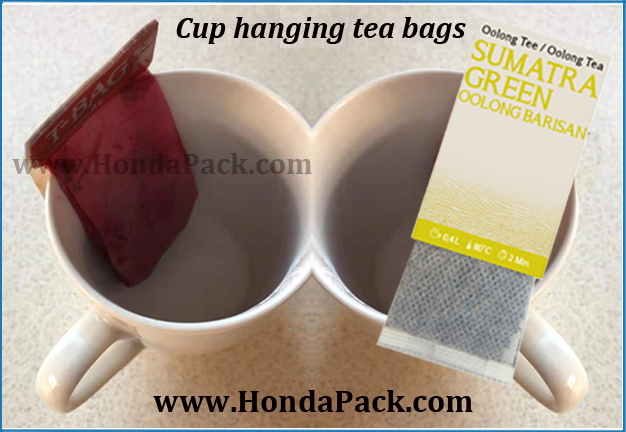

Here Youtube Video how to brew hanging ear tea bag in cup:
