This automatic camphor tablet packing machine is suitable for small package like Desiccant, Silica Gel, and Preserver,etc, which are widely used in food industry, medicine industry, cosmetics industry, chemical industry and so on.

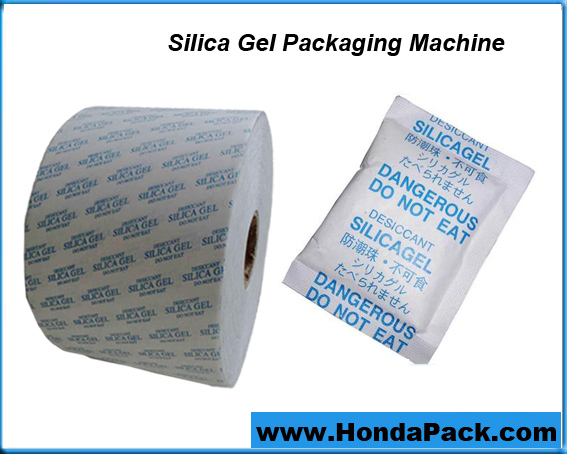

Heat sealing non woven fabric is mainly used for packaging desiccants, activated carbon, pure diatoms, minerals, Chinese medicine materials, etc. This product is wear-resistant, high-temperature resistant, and has good air permeability. It is packaged with low-temperature heat-sealing non-woven fabrics and PET composite materials. Non-woven fabrics for woven and powder packaging. Paper smooth food-grade heat-sealed non-woven fabrics. Activated carbon packaging non-woven fabrics. Silicone heat-sealed packaging non-woven fabrics.
Feature:
1. Adopt PLC control, photoelectric tracking and crook correcting.
2. The bag length can be accurately adjusted according to the requirement.
3. Problems will be shown on the screen, it is convenient for checking and maintenance.
4. Conform to the GMP standard, highly efficient, easy to operate and maintain, steady and durable.
5. All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.
6. The entire of process from weighing, bag making, filling, sealing, cutting and counting can be fully automatically operated.
Standard Technical Data
Technical data |
|
Type: |
High speed Packing Machine series |
Product model: |
G74K |
Product name: |

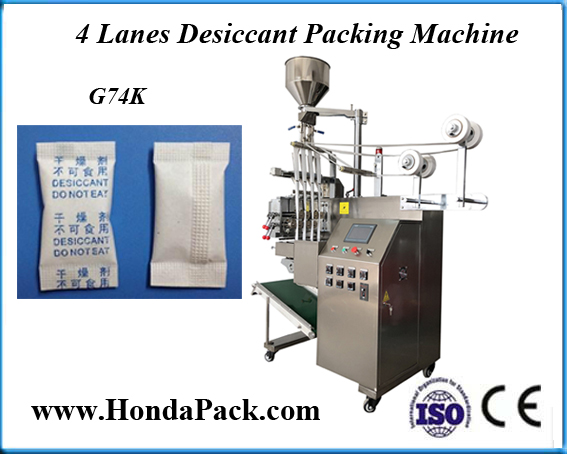

Automatic 4 Lanes Granule Packing Machine |
Filling range: |
1-5gram; 5-10gram; |
Measuring: |
Volumetric cups |
Speed: |
40-80bag/min per lane (Depends on material) |
Packing Material: |
Paper/plastic, Plastic/plastic, Paper/aluminum, Plastic/aluminum, PE |
Lanes: |
Four lanes |
Bag size: |
L:50-110mm; W:20-80mm |
Bag type: |
Back sealing bag |
Sealing type: |
Heat sealing |
Power: |
220V/50HZ, single phase, 2.2kw |
Weight: |
550KG |
Dimension (L*W*H): |
1200X760X1950 (L * W *H mm) |
