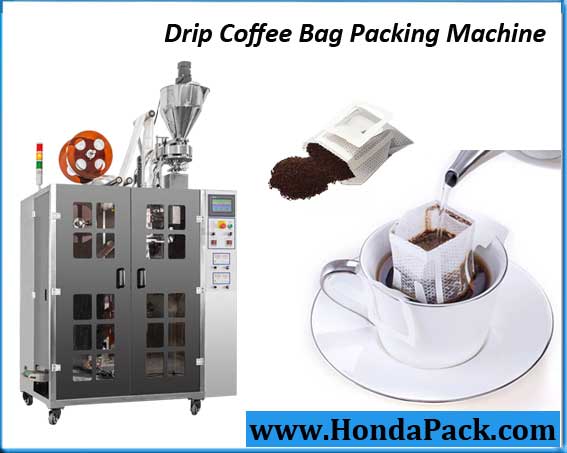

Vietnam Drip coffee bag packing machine is suitable for Vietnamese drip coffee bag with outer envelope - Photo for details and Video below:

The main purpose:
The large-dose vietnam Drip coffee packaging machine has a wide range of uses, mainly suitable for packaging large granular coffee materials with good fluidity.

Product performance characteristics:
1. The production of this machine is very extensive, and can be used in occasions such as frequent changes in material varieties (Drip coffee, steeped coffee bag) and packaging specifications without being restricted by packaging type.
2. The equipment has fast processing speed, high precision, manual bagging, automatic measurement, and the stability is very firm and the service life is quite long.
3. The equipment is divided into measuring machine and filler machine, the measuring machine is self-flow feeding, and the small filler is vibrating feed.
4. The equipment is weighed by an electronic scale, which overcomes the shortcomings of measurement errors caused by changes in the specific gravity of materials. And the digital display is simple and intuitive, the specifications of the packaging can be continuously modulated, the working state can be changed arbitrarily, and the operation is very simple.
5. For the fragile materials, the senior engineer of specially equipped the dust removal interface or vacuum device specially designed by our company on the bag mouth of the material, so that the production cost is greatly saved, and it is easy to operate. It is very simple, and is loved by manufacturers.

Technical parameter:
Machine weight 650kg
Measurement method Weighing type (industrial electronic scale)
Packing speed 38～52 bags/min
Single bag error ≤±0.1G
Machine power 1050 watts
Weighing range 1-14G kg (continuously adjustable)
Material The part in contact with the material is stainless steel # 304
Overall volume 1850×950×1100(mm)
Power supply 220V/50Hz

Standard Technical Data:

2. Type of drip coffee bag: People from whole world used drip coffee bag between 90*74mm and 90*70mm because the drip coffee bag materials is a kind of standard products for packing machine.

3. The packaging materials for outer bag is Kraft paper bag or PE bag with aluminum foil, For more details, please kindly contact us.

4. Here shows how to brew the drip coffee bag with a cup and a bottle of hot water.

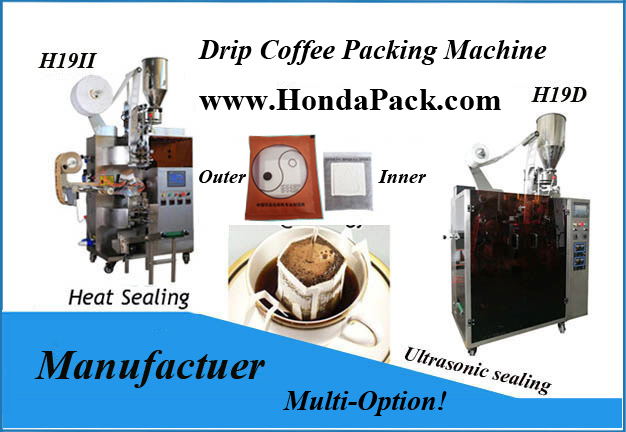

5. The main difference between heat sealing and ultrasonic sealed drip coffee bag is in Sealing Edge of Inner bag. For more details, please kindly contact us.

5. Here shows the working video of drip coffee bag packaging machine:
Except this video, welcome to click here to see more working video.
