Honeycomb nylon pyramid tea bag roll tagging machine is used to add the tag with thread to roll of packing film automatically.

Feature of tea bag roll tagging machine:
1. It adopts the ultrasonic bonding method.
2. It can accurately control the adhesion, fastness and effect, the trigger type ultrasonic with high stability, and low failure rate.
3. With full computer monitoring and automatic shutdown function when missing lines and missing labels.
4. Adopt PLC control to realize man-machine interface.
5. This machine can automatic switch between long-line and short-line.

Technical Parameters for tea bag roll tagging machine：

Project	Tea Roll Tagging Machine
Production speed	50-80 bags / minute
Mesh type	Nylon, PET, Non-woven fabric, PLA mesh
Mesh width	120 140 160 180mm (depending on the model)
Label size	20*20mm
Label line length	110-170mm
Label paper roll requirements	20mm wide, the film needs to meet the requirements
Retracting and winding core diameter	Φ76mm
Retractable and unwinding outer diameter	≤Φ400mm
Bonded form	ultrasonic
Number of ultrasonic	4 sets
Qualified rate of finished products	≥99.9%
Air source pressure	≥0.6Mpa(supply by customer)
Operator	2-3 machines for 1 person
Electric power for the internal motor	AC220V/50HZ
Equipment Dimention	L 1350*W1150*H1950（mm）
Equipment weight	550kg

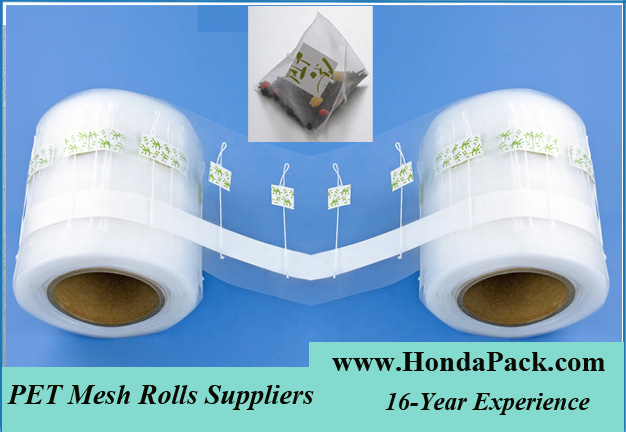

Pyramid tea bag roll tagging machine for PET Mesh Rolls:

Pyramid tea bag roll tagging machine for pla mesh Rolls:

Pyramid tea bag roll tagging machine for PLA Biodegradable Nonwoven Mesh Rolls:
